3W IP65 300Lm Rechargeable Black Explosion-proof LED Power Headlamp
Product Features
● User-friendly Design: Light weight suitable for head and helmet. Focus light and
adjustment lamhead function, fully applicable to all kinds of
working sites;
● Special Lithium Battery: Environmentally friendly, no memory, large capacity, long life,
safety and stability, low self-discharge, charge and discharge at
any time;
● High Power LED: Low energy consumption, high light efficiency, long life up to
100,000 hours;
● Multiple Carrying Methods:Hand-held, shoulder-held, hand-held and hat-held , easy to carry;
● Waterproof and Durable: LED headlamp is made of bulletproof plastic material, can
withstand strong collision, can be used in the rainy days or
extreme harsh environment.
Technical Parameters
| No. | Parameter | Unit | Value |
| 1 | Rated Power | W | 3 |
| 2 | Rated Capacity | Ah | 2.2 |
| 3 | Light Source | Luminous Flux | lm | 300 |
| LifeSpan | h | 100,000 |
| 4 | Working Time | High Light | h | 5.5 |
| Weak Light | 12 |
| 5 | Charging Time | h | 6 |
| 6 | Battery Life | Cycle | 1000 |
| 7 | Dimensions | mm | 65*80*65 |
| 8 | Weight | g | 90 |
| 9 | IP Rating | - | IP65 |
| 10 | Ex Mark | - | Ex d IIC T4 Gb |
Usage
● Charge the led headlamp before use, charger indicator is red when
charging, the indicator light turns green when fully charging;
● When use, first press-> high light-> second press-> weak
light-> long press-> strobe;
● Battery power indicator 1:
Turn off the headlmap, then long press the switch,
if the light flash 5 times, 80% battery power remaining;
if the light flash 4 times, 60% battery power remaining;
if the light flash 3 times, 40% battery power remaining;
if the light flash 2 times, 20% battery power remaining.
● Battery power indicator 2:
When turn on the headlamp, battery power more than 30% if the
switch shows green light;
battery power less than 30% if the switch shows red light, the
headlamp can only use one hour at that time.
● With up-down adjustable lamphead and adjustable focus lens,
adjust the headlamp according to working requires.
Application
This product is applied in the railway, electricity, oil,
metallurgy, military, public safety, petrochemical and other
industries, to provide job site mobile lighting at night.

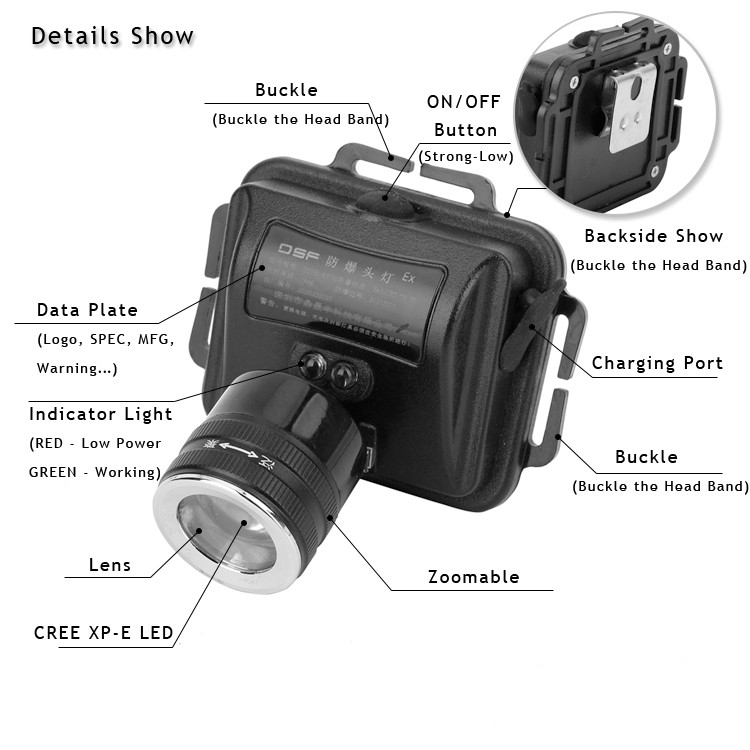

Product Shows
Package
Package including as below:
● DSFB-6302 LED Headlamp
● Charger
● Elastic strap
● Helmet hook
● User Guide
