27W Rechargeble Explosion proof Led Light Fixtures 3200Lm Portable
Lamp
Explosion-proof Portable Lamp
| Parameters | Unit | Value |
| Rated Voltage | V | 14.8 |
| Rated Capacity | Ah | 10 |
| LED Source | Working Voltage | V | 12 |
| Rated Power | W | 27 |
| Luminous FLux | lm | 3200 |
| Lifespan | h | 100000 |
| Working Time | High Light | h | 10 |
| Weak Light | 20 |
| Charging Time | h | ≤10 |
| Battery Lifespan | Circle | Approx.1000 |
| Dimension | Length | mm | 254 |
| Width | 204 |
| Height | 640 |
| Weight | kg | 7 |
| IP Rating | - | IP65 |
| Ex Mark | - | Ex ed ⅡC T6 Gb |
Usage
● Rotate the switch on the battery box of the work light, the first
mode is working light, the second mode is strong light.
● Adjusting the angle of the lamp: The lamphead is supported by a
flexible stainless steel. When using it, you can adjust the
direction of the light angle as working require. Just move the head
with your hand.
● It can be used at any time within 6 months after a full charge. If
it is not used for a long time, it should be charged for 12 hours
every half year.
● When charging, the charger output plug does not need to be divided
into positive and negative polarity. The indicator light on the
charger is red, indicating that it is charging; when the red
indicator light turns green, it indicates that the battery is fully
charged. When the power is turned off or the charging circuit is
short-circuited, over-current, or overheated, the charging
indicator on the charger does not light.
● The work light uses advanced LED light source. Non-professionals
should not disassemble the light structure or replace the light
bulb.
● There are 5 5mm green LEDs on the battery box panel.
When the battery power is greater than 80%, the 5 LEDs all display
green;
When the power is less than 80%, the LED will turn off one light
from right to left, and only 4 LEDs will be illuminated at this
time;
When the power is less than 60%, only 3 LEDs are illuminated;
When the power is less than 40%, only 2 LEDs are illuminated;
When the power is less than 20%, only 3 LEDs are on. Please use it
after fully charged.
● The work lamp has an over-discharge protection function. When the
battery voltage is 11.5V, the light will flash prompting, and after
10 flashes, it will return to the original state illumination; when
the voltage drops to 11.2V, the work light will automatically turn
off the light protection.
● Poly-flood function: the lamp head is equipped with spotlight and
floodlight. Turn on the work light and lock on the lamp cap, it can
work as a floodlight and provide large-area lighting; unlock the
lamp cap, it can work as a spotlight and provide long-distance
illumination.
Product Show

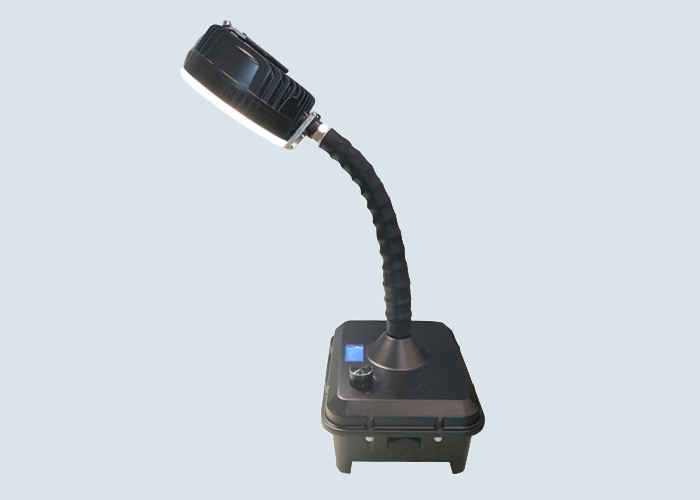

Explosion-proof LED work light with floodlight and spotlight, power
indicator and adjustable head.
