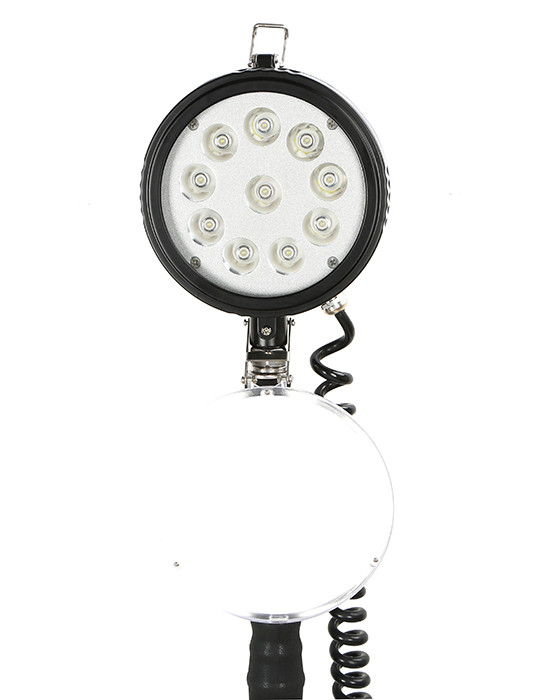

IP65 30W 1.75m 4000Lm Explosion-proof Intrinsically Safe Led Work
Light
Instructions
● Lighting Modes: Press the switch on the back of the lamphead,
first press -> strong light -> second press -> weak light
-> Long press -> Strobe -> Last press -> OFF.
● Power display function: There is a two-color patch light tube on
the switch board. When the power is higher than 10%, it is green.
When it is lower than 10%, the red light flashes. It will
automatically turn off after about 30 minutes.
● Poly-flood function: the lamp head is equipped with spotlight and
floodlight. Turn on the work light and lock on the lamp cap, it can
work as a floodlight and provide large-area lighting; unlock the
lamp cap, it can work as a spotlight and provide long-distance
illumination.
● Once fully charged, it can be used at any time within 3 months. If
it is not used for a long time, it should be recharged for 16 hours
every 3 months.
● When charing, the charging indicator on the charger is red;
When fully charged, the red indicator light turns into green;
When the power is turned off or the charging circuit is
short-circuited, over-current, or overheated, the charging
indicator on the charger won't light on.
● Non-professionals please do not disassemble the lamp parts or
replace the bulb.
● Adjusting the angle of the lamp: The lamphead is supported by a
flexible stainless steel. When using it, you can adjust the
direction of the light angle as working require. Just move the head
with your hand.
Specification
| No. | Parameters | Unit | Value |
| 1 | Rated Voltage | V | 18.5 |
| 2 | Rated Capacity | Ah | 10 |
| 3 | LED Source | Working Voltage | V | 18 |
| Rated Power | W | 30 |
| Luminous FLux | lm | 3900 |
| Lifespan | h | 100000 |
| 4 | Working Time | Strong Light | h | 9 |
| Weak Light | 16 |
| 5 | Charging Time | h | ≤8 |
| 6 | Battery Lifespan | Circle | Approx.1000 |
| 7 | Dimension | Length | mm | 253 |
| Width | 195 |
| Height | 1750 |
| 8 | Weight | kg | 9.2 |
| 9 | IP Rating | - | IP65 |
| 10 | Ex Mark | - | Ex de ⅡC T6 Gb |
