60W 6000Lm 5800K IP65 Waterproof LED Lights Explosion Proof Led
Fixtures
Product Features
1. Designed and manufactured according to the requirements of
explosion-proof explosion-proof structure, it can work safely and
reliably in flammable and explosive places.
2. It adopts the international top brand original LED light source,
which has low energy consumption and high luminous efficiency, and
consumes only 20% of the same luminous flux incandescent lamp.
Energy saving and environmental protection.
3. The shell is made of aluminum die-casting and the most advanced
surface electrostatic spraying technology. The outer fasteners are
made of 304 stainless steel. The seals are made of silicone
material, high anti-corrosion, waterproof and dustproof; float
tempered glass transparent cover, special The diffuse anti-glare
design has a light transmittance of more than 96%.
4. The separation structure of the light source cavity and the
power supply cavity and the wiring cavity is designed to
effectively improve the heat dissipation performance and prolong
the service life of the light source.
5. Light source components, light distribution components, power
modules, etc. are all designed and assembled using standard
modules, which can be easily replaced and reduce maintenance costs.
Explosion-proof LED Light Specification
| Parameter | Unit | Value |
| Input | Rated Voltage | V | AC85-260 |
| Rated Frequency | Hz | 47-63 |
| Light Source | LED | Bridgelux | 60pcs LED |
| Power | W | 60W |
| Luminous Flux | Lm | 6000 |
| Life Span | h | 100000 |
| Color Temperature | K | 5800K |
| Power Factor | % | ＞0.98 |
| Lamp Efficiency | ＞90 |
| CRI | Ra | >80 |
| Dimension | mm | Φ228×277 |
| Weight | kg | 5.8 |
| Anti-corrosion Grade | - | WF2 |
| Working Temperature | - | -20℃ ～ +40℃ |
|
| IP Rating | - | IP65 |
| Ex Mark | - | ExdⅡC T6 Gb |

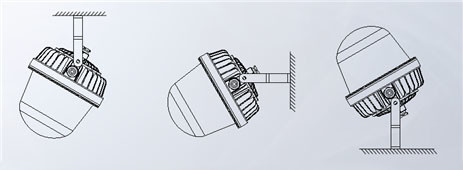

Installation
Ceiling installation Side wall installation Seat installation
