Aluminum Alloy Black High Power 26650Lithium ion Rechargeable Torch
Light
Operation Instruction
1.Light on: Tap the tactical switch (tap it for 1.5 seconds) to
turn on the light. It changes modes from Super Brightness -- High
Brightness --
Medium Brightness -- Low Brightness, and tap again for 1.5
secondsthe light will go out.
2.Strobe: Tap the switch twice to enter Strobe model (no matter
whetherthe flashlight is on / off), based on 6Hz or 15Hz flash
type, every 2
seconds it will change the flash frequency and the light will go
out after anther twice click.
Recharge The Product
To rotate the lamp head in counterclockwise rotation and take out
the battery, and charge the battery under our recharge socket.
Please pay attention to the right connection of terminals between
battery andthe recharge socket.
Technical Parameters
| Item | Value |
| Power | 5W | 10W |
| Light Source | CREE XP-G(R5) | Cree XM-L2 U2 |
| Battery | Capacity | 3500mAh |
| Type | 26650 Rechargeable Battery |
| Luminoux Flux | Super Bright | 460Lm | 960Lm |
| High | 258Lm | 452Lm |
| Medium | 100Lm | 165Lm |
| Low | 25Lm | 60Lm |
| Strobe | 460Lm | 960Lm |
| Working Time | Super Bright | 2.8h | 1.5h |
| High | 4.5h | 3h |
| Medium | 10h | 8h |
| Low | 160h | 42h |
| Strobe | 2.8h | 1.5Lm |
| Charging Time | 6~h |
| Waterproof Grade | IP68 |
| Working Temperature | -10~+40℃ |
| Lighting Distance | 380m | 500m |
| Dimension | Φ43*146mm |
| Weight | 260g | 265g |

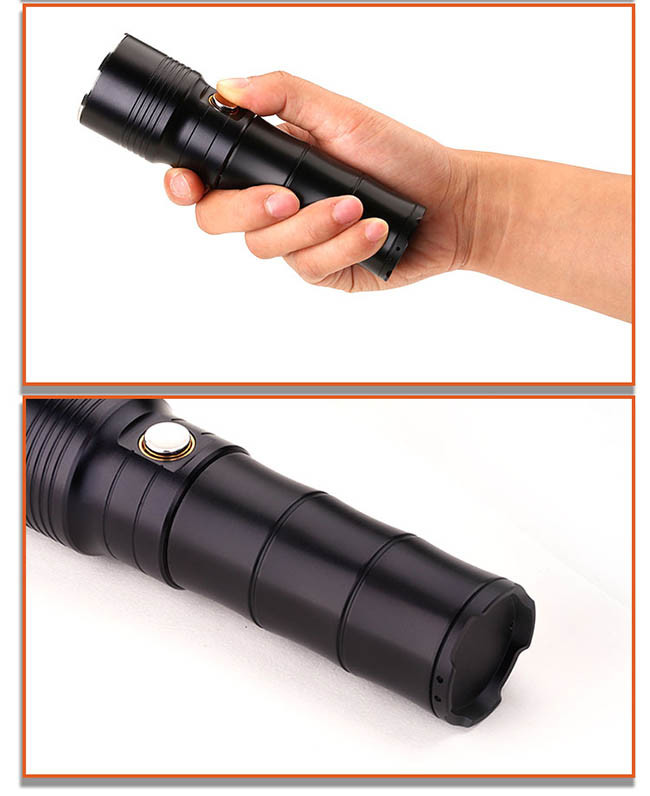

Product Shows
R3 rechargeable flashlight with high lumen, it is produced under
the precision machining by materials of aviation aluminum.
It makes simple but grade style for its outlook, comfortable
feeling at hands, moderate size and easy taking. We design its
switch button in the front of torch, it is convenient operation and
suitable for one-hand taking. Stainless steel switch buttons
can be with longdurability, Double seals to make secure and better
effect for waterproof performance to be IPX 8 (it suits to be
under 2 - 60 meters water depth). Lighting sources are from
original Cree LED to last for more than 10 thousands hours .
With large lithium battery capacity 26650 type to ensure its longer
working hours for the product.
This led flashlight is suitable to the lighting demand in kinds of
fields like home lighting, outdoor activities for survival living,
travel,
clamp,hunting,diving,emergency lighting for home, long-distance
driving,and outdoor construction,resources exploration or the job
for emergency rescue and disaster relief.
