60W 7800Lm Explosion proof Led Fixtures Explosion proof Led High
Bay lighting
Main Features
● Design and produce according to flammable and explosive working
places, safe and reliable;
● Using original solid maintenance-free LED green light source,
high light efficiency, long life, the average life of 100,000
hours, energy saving and environmentally.
● One-piece two-chamber shell with aluminum alloy material and the
latest surface treatment technology, wear-resistant anti-corrosion,
waterproof and dustproof; with air diversion structure inside and
outside the thermal guide duct, increase the cooling area, so that
LED is fully heat, effectively extended Light source life.
● The lighting components and power supply are using standard
modules designed and assembled, can be easily replaced, reducing
maintenance costs; seal materials are silica compaction, can be
used normally in damp and harsh environments.
● The installation method is ceiling type, curved rod type and wall
hanging type. Small size, light weight, easy to install and wire.
Technical Parameters
| No. | Parameter | Unit | Value |
| 1 | Input | Rated Voltage | V | AC85-260 |
| Rated Frequency | Hz | 47-63 |
| 2 | Light Source | LED | Bridgelux | 60pcs LED |
| Power | W | 60W |
| 3 | Luminous Flux | Lm | 6000 |
| 4 | Life Span | h | 100000 |
| 5 | Color Temperature | K | 5800K |
| 6 | Power Factor | % | ＞0.98 |
| 7 | Lamp Efficiency | ＞90 |
| 8 | CRI | Ra | >80 |
| 9 | Dimension | mm | Φ228×277 |
| 10 | Weight | kg | 5.8 |
| 11 | Anti-corrosion Grade | - | WF2 |
| 12 | Working Temperature | - | -20℃ ～ +40℃ |
|
| 13 | IP Rating | - | IP65 |
| 14 | Ex Mark | - | ExdⅡC T6 Gb |
Application
Oil, petrochemical, chemical plant towers, oil stations, oil
depots, gas stations, oil pump rooms, furnaces, platforms, power
distribution rooms, operation rooms, duty rooms, metering rooms,
joint stations, etc. Fixed lighting required for installations such
as flammable and explosive places.

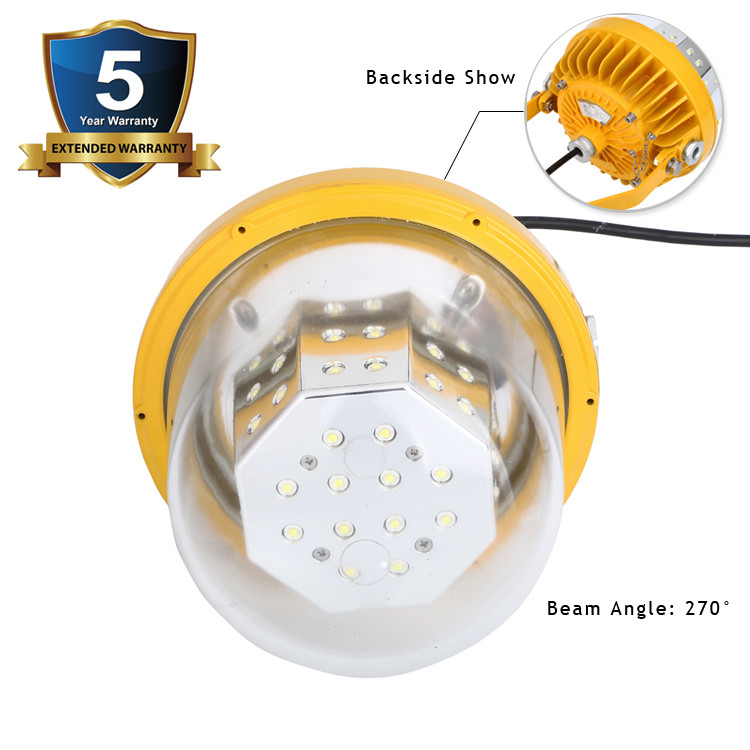

Details Show
