High Power Outdoor LED Street Lights 100w Cobra Head Led Light 105 Lm/W

Ask Lasest Price
Brand Name :	DSF
Model Number :	SL-1
Certification :	ISO14001: 2015 , ISO9001: 2015
Price :	Negotiation
Payment Terms :	T/T; Paypal
Supply Ability :	3000pcs/month

Add to Cart

Product Details
Company Profile

High Power Outdoor LED Street Lights 100w Cobra Head Led Light 105 Lm/W

IP67 Waterproof Led Street Light 100w High Power Led Street Light

Parameters

No.	Item	Unit	Value
1	Power	W	100
2	Luminuox FLux	Lm	10500
3	Lighting Effect	Lm/W	105
4	Lamp Efficiency	-	>90%
5	Color Temperature	K	2700-6500
6	Color Rendering Index	-	Ra>70
7	Working Humidity	RH	10%—90%RH
8	Ambient Temperature	°C	-40~50
9	Mounting Aperture	mm	Φ58-Φ62
10	Installation Height	m	6-9
11	Beam Angle	degree	140
12	Input Voltage	V	90~305AC
13	Frequency Range	HZ	50/60
14	Power Factor	-	>0.95
15	IP Rating	-	IP67
16	Weight	kg	8.64

Application

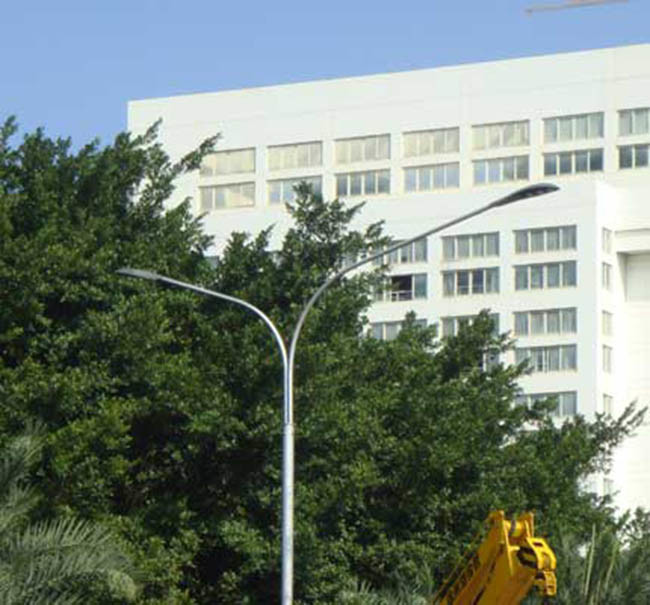

Applied to urban primary and secondary roads, expressways, traffic roads, country roads, plazas, factories, etc.

High Power Outdoor LED Street Lights 100w Cobra Head Led Light 105 Lm/W

LED Street Light Installation

High Power Outdoor LED Street Lights 100w Cobra Head Led Light 105 Lm/W

(1) Installation of street lamps and poles
Clamp installation: Insert the lamp post into the mounting hole (E position in the figure), and lock the four hexagon socket bolts “A, B, C, D”
Installation torque: screw torque is 12N·M (ABCD is M10*30 hex)
Projected area: 0.10㎡
Mounting height and elevation: Refer to the Technical Data section
Type C connection: Y-connection, the external flexible cable or cord of the luminaire is damaged, and the line should be replaced by the manufacturer or its service agent or a qualified person to avoid danger.

(2) Connect the reserved line of the street light interface to the light pole line. Note that the fire line, neutral line and ground line are connected as follows without clear identification:

Brown line → L
Blue line → N
Two-color line → G
