Brand Name : | DSF |
Model Number : | DSFG-921 |
Certification : | ISO14001: 2015 , ISO9001: 2015 |
Payment Terms : | T/T; Paypal |
Supply Ability : | 3000pcs/month |
Price : | Negotiation |
● The lamp body metal is made of aluminum alloy, high quality and durable.
● The lampshade is made of PC. Compared with the die-casting
material, the product has better heat dissipation and stronger
impact resistance. Lighter weight.
Item | Unit | Technical Parameters | |
Light Source | LED Power | W | 30 |
Luminous Flux | Lm | 7000 | |
Color Temperature | K | 5500-6000 | |
CRI | Ra | >70 | |
Life Span | h | 100000 | |
LED Driver | Input Voltage | V | 120-277 |
Input Power | W | 50 | |
Input Current | A | 0.23 | |
Output Current | A | 1.05 | |
Output Voltage | V | 42 | |
Typical Efficiency | - | 88% | |
Typical THD | - | 10% | |
Typical Power Factor | - | 0.97 | |
Life Span | h | 50000 | |
IP Rating | - | IP65 | |
Anti-corrosion Grade | - | WF2 | |
Working Temperature | ℃ | -20~40 | |

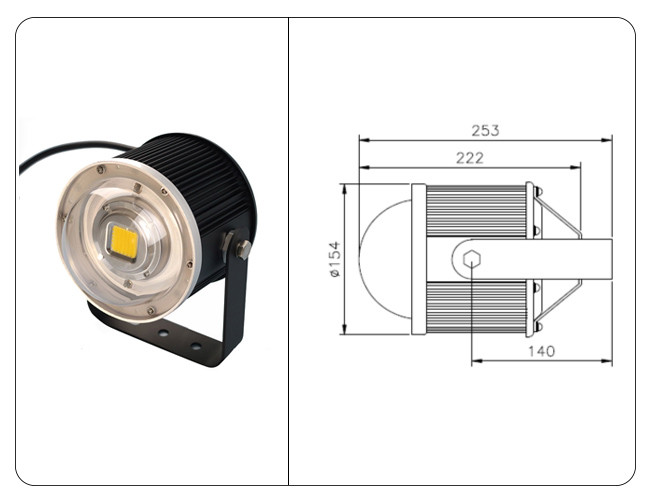

Dimension | mm | Ø156X340 | |
Weight | kg | 2 |
1. Hanger Type
2. Arm Type
3. Bracket Type
4. Projection type
1. Hanger Type, Arm Type and Bracket Type
2. Projection type
Provide outdoor lighting and indoor lighting, such as building exterior lighting, landscape lighting, park streets, warehouses, airports, stadiums, supermarkets, etc.
![]() |
