Professional 100W Industrial High Bay Led Lighting
LED High Bay Light Features
1. The material of heat sink is high thermal conductivity NO.ADC12
aluminium, good for heat dissipation.
2. The special design of housing help to speed up the heat
dissipation, further ensuring the life of the fixture.
3. The intergrated of the appearance make the fixture looks
elegant.
4. The fixture is waterproof, dustproof, anticorrosive.

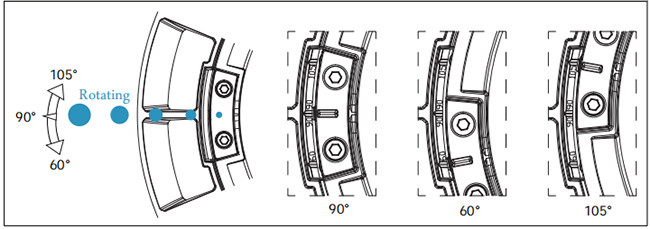

5. Adjustable focus:60°/90°/105° optional.
High Bay LED Light Specification
| Power | 100W | 150W |
| LED Type | SAMSUNG/World famous chips |
| LED QTY | 266PCS | 182PCS | 252PCS | 392PCS | 252PCS | 308PCS |
| SAMSUNG | World famous chips | World famous chips | SAMSUNG | World famous chips | World famous chips |
| System Efficacy | 130±5% LM/W | 130±5% LM/W | 140±5% LM/W | 130±5% LM/W | 130±5% LM/W | 140±5% LM/W |
| Luminous Flux | 13000±5% LM | 13000±5% LM | 14000±5% LM | 19500±5% LM | 19500±5% LM | 21500±5% LM |
| CCT | 3000K, 4000K, 5000K, 5700K, 6500K |
| Beam Angle | 60°, 90°, 105° |
| CRI | Ra>80 |
| System Efficiency | >90 |
| Power Supply | LIFUD/MeanWell/ZhiHe |
| Input Voltage | AC100-277V |
| Power Frequency | 50/60Hz |
| Output Voltage | DC80-130V/DC28.8-48V |
| Output Current | 0.73/2.19A(Constant Currrent) | 1.09/3.28A(Constant Currrent) |
| Power Efficiency | ≥90% |
| Power Factor | ≥0.9 |
| Total Harmonic Distortion | ＜15% |
| System Power consumption | 100±5 W | 150±5 W |
| Led Power consumption | 0±5 W | 0±5 W |
| Fixture Material | ADC12 Aluminum alloy |
| Luminaire Net Weight | 3±0.2KG | 3±0.2KG |
| Export Carton Size | 305*305*205mm |
| Luminaire Gross weight | 3.5±0.2KG | 3.5±0.2KG |
Installation
☛ Ceiling Installation
1. Drilling a hole in the ceiling, install a hook
2. Handing the high bay light.
3. Connect the cable. (Black-L, White-N, Green- ground)
☛ Bracket Installation
1. Drilling holes in the ceiling, and install the expansion screws.
2. Fix the bracket.
3. Connect the cable. (Black-L, White-N, Green- ground)
4. Adjustable the bracket to the beam angle you need.
